Lay your Victorian floor before you buy a tile.
Draw the room, choose a real Armatile panel and border, and watch it laid at true scale. The planner counts every panel, border strip, corner and cut, and prices them from Armatile’s list.
Free to use. You only need an account to save a design.
Every panel in the planner, laid to scale.

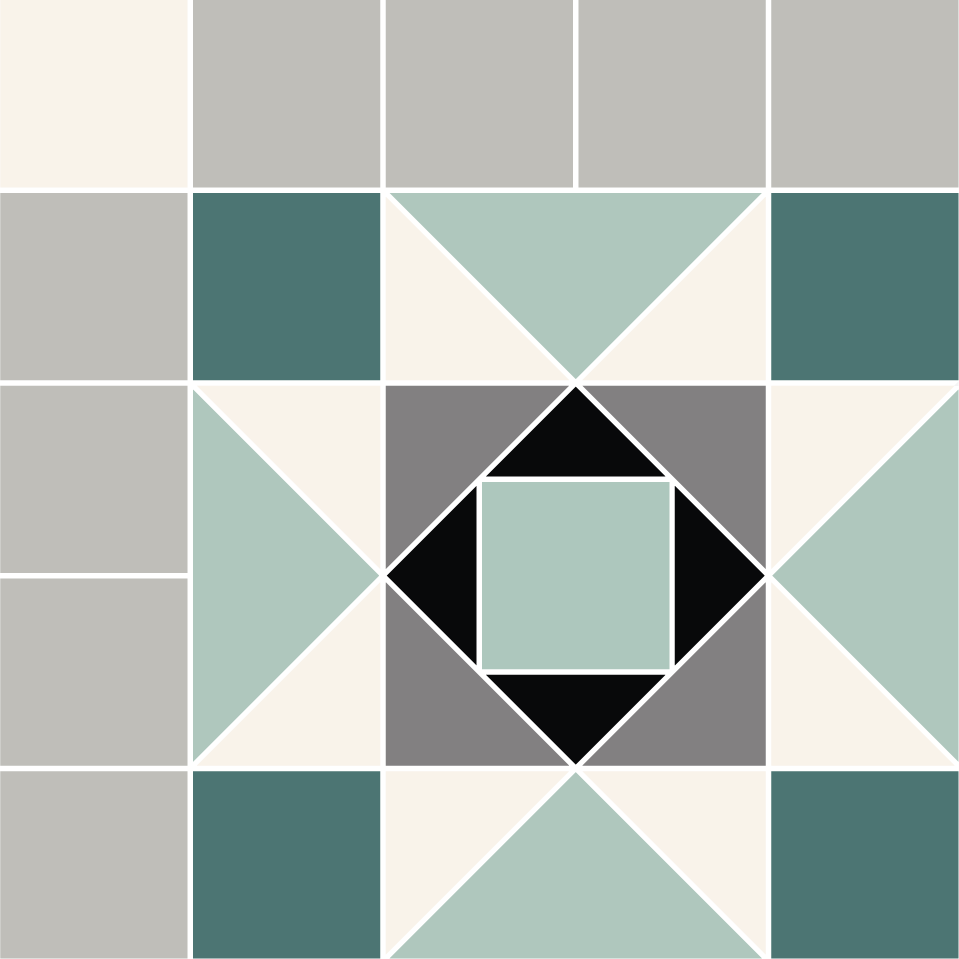

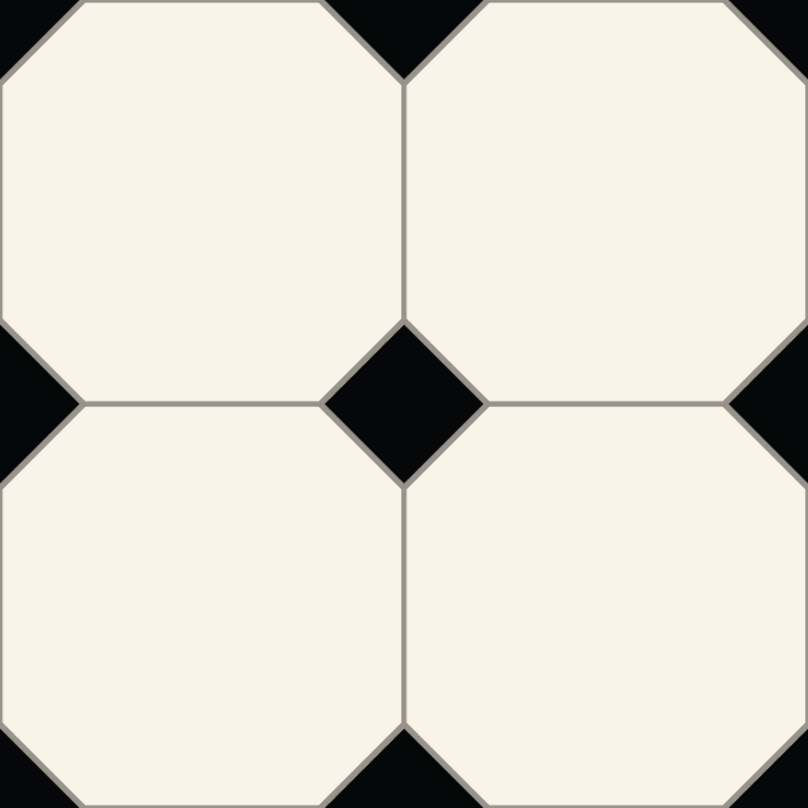

These are Armatile’s own panels, from seven collections. Pick one to see a 1.8 metre square of floor in it.

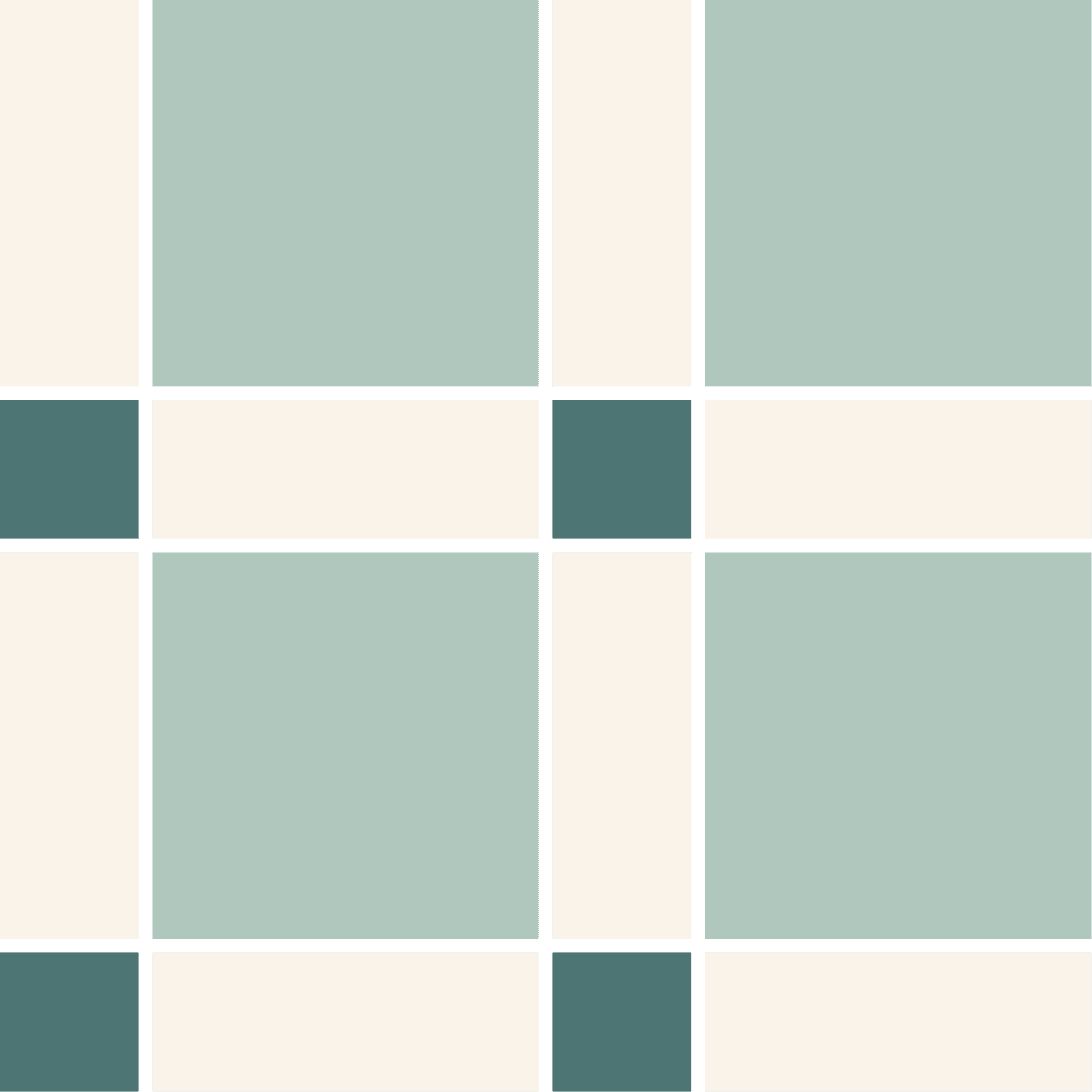

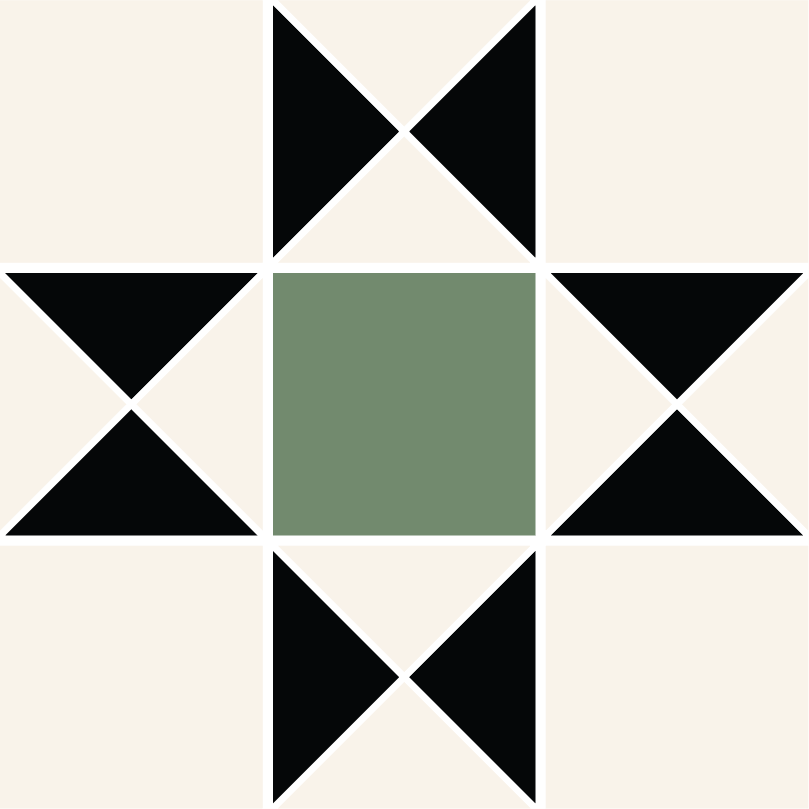

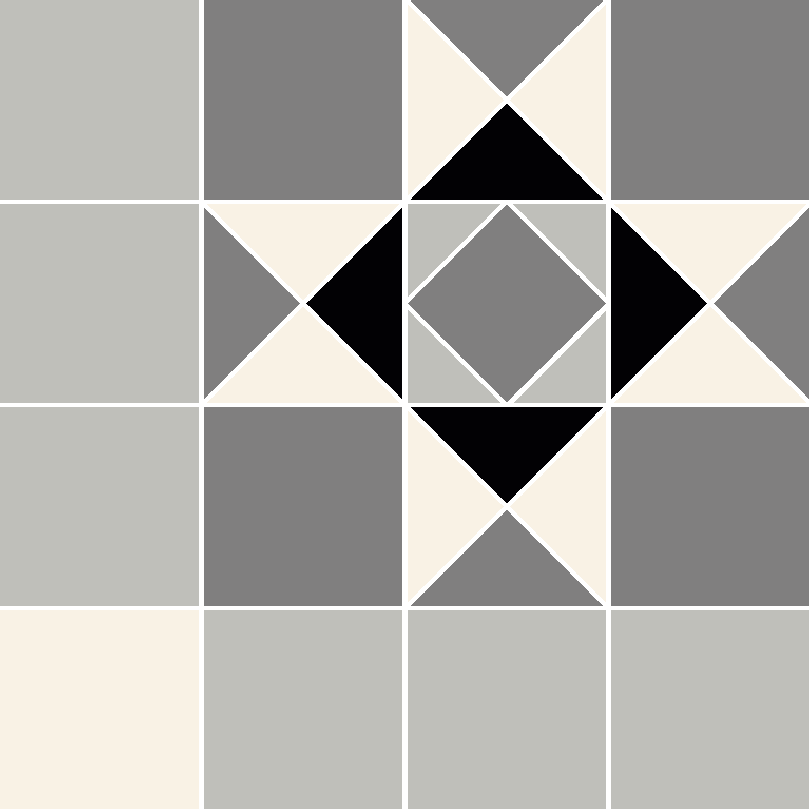

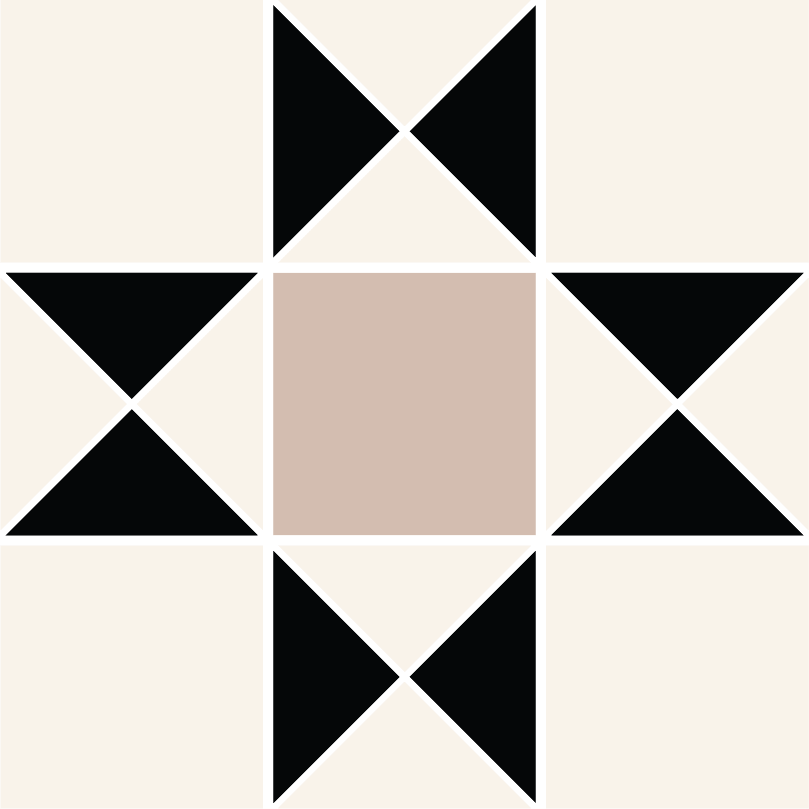

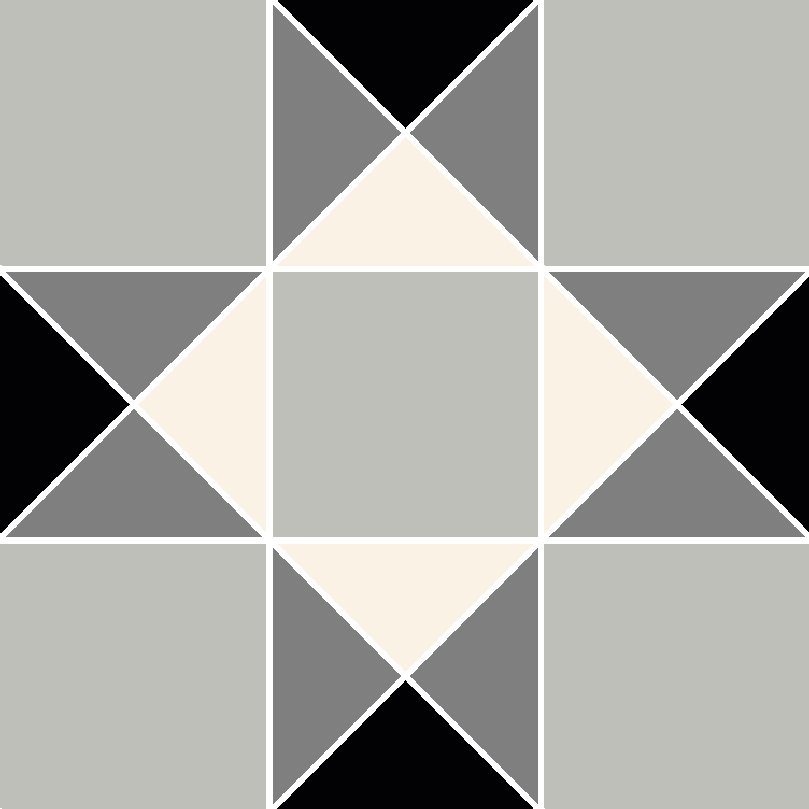

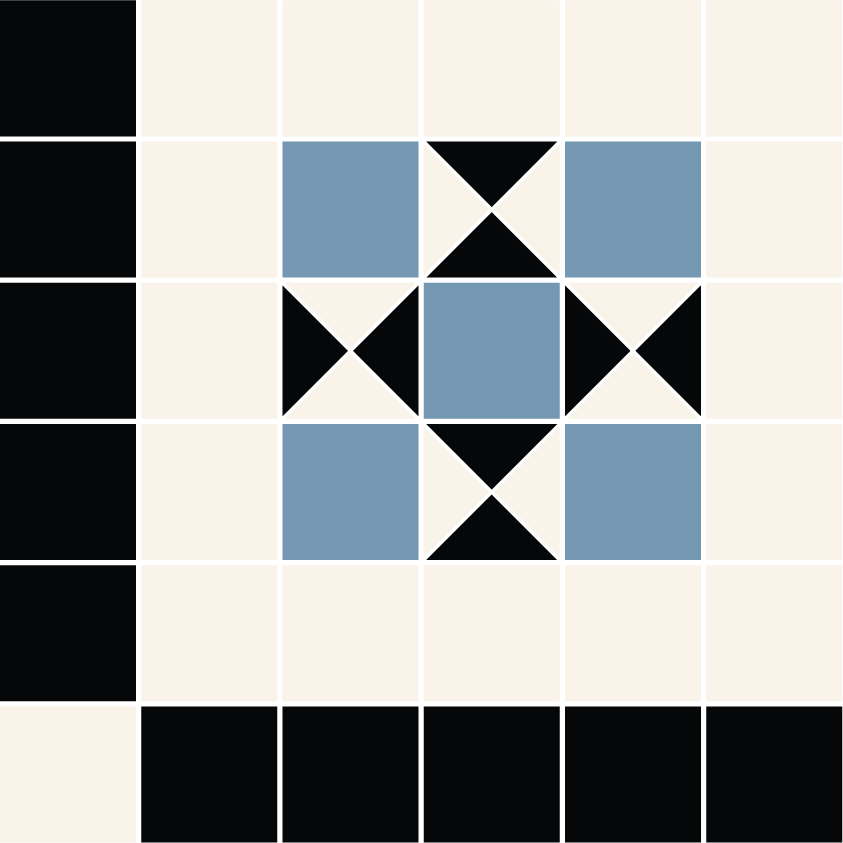

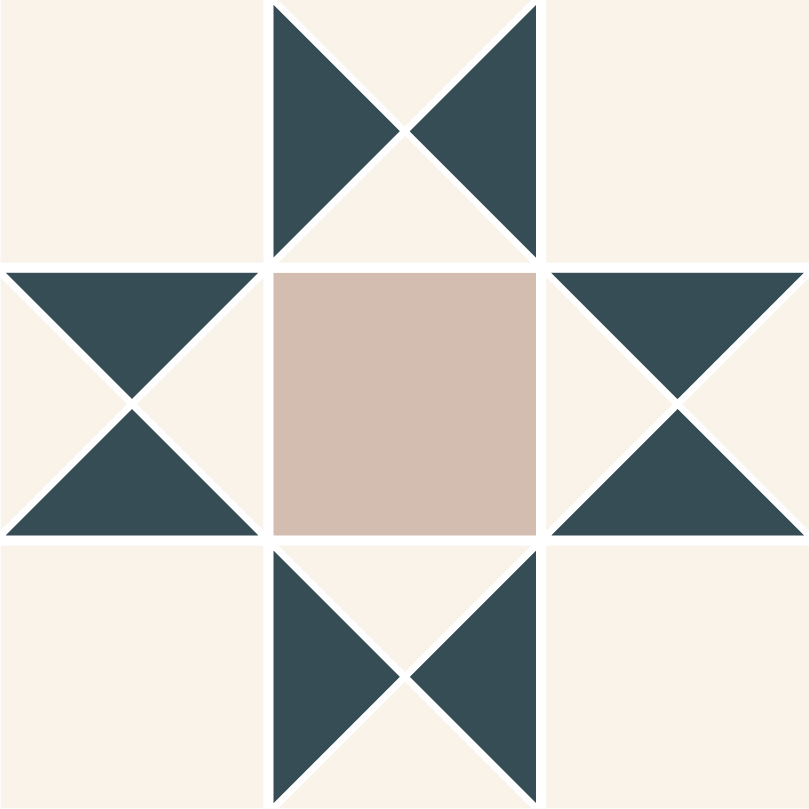

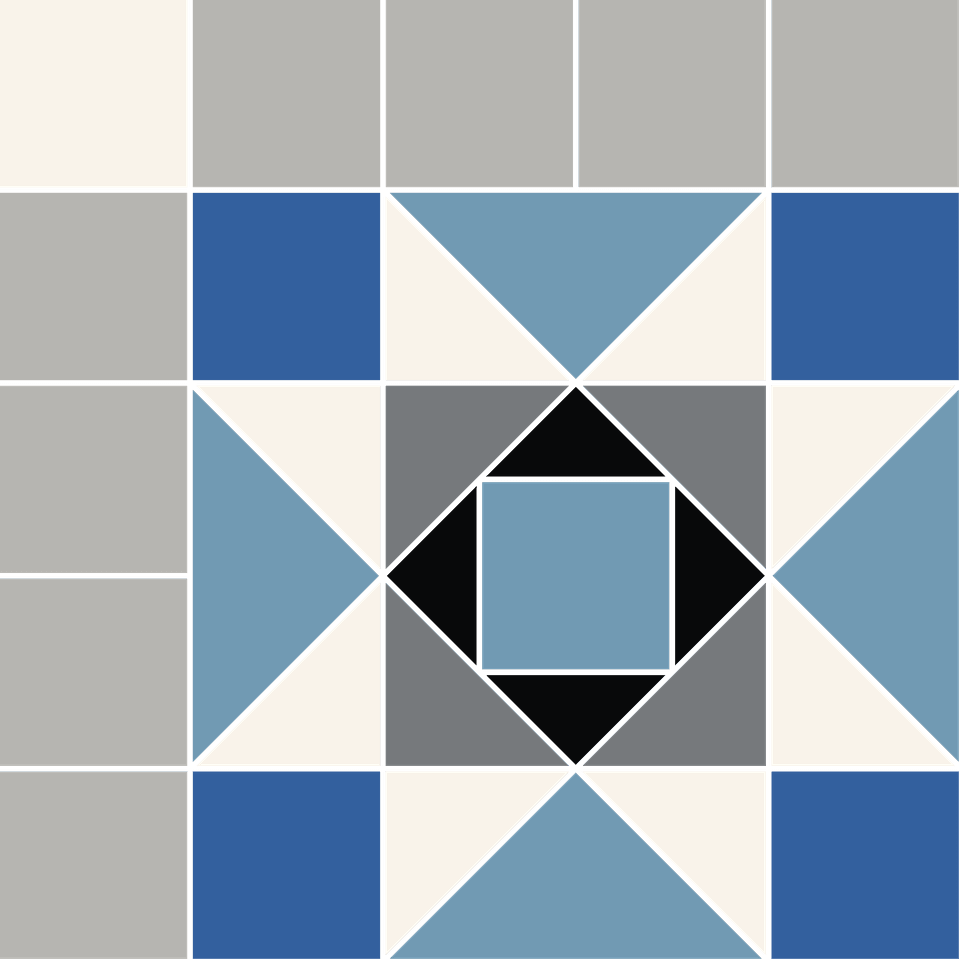

Donard Panel Collection

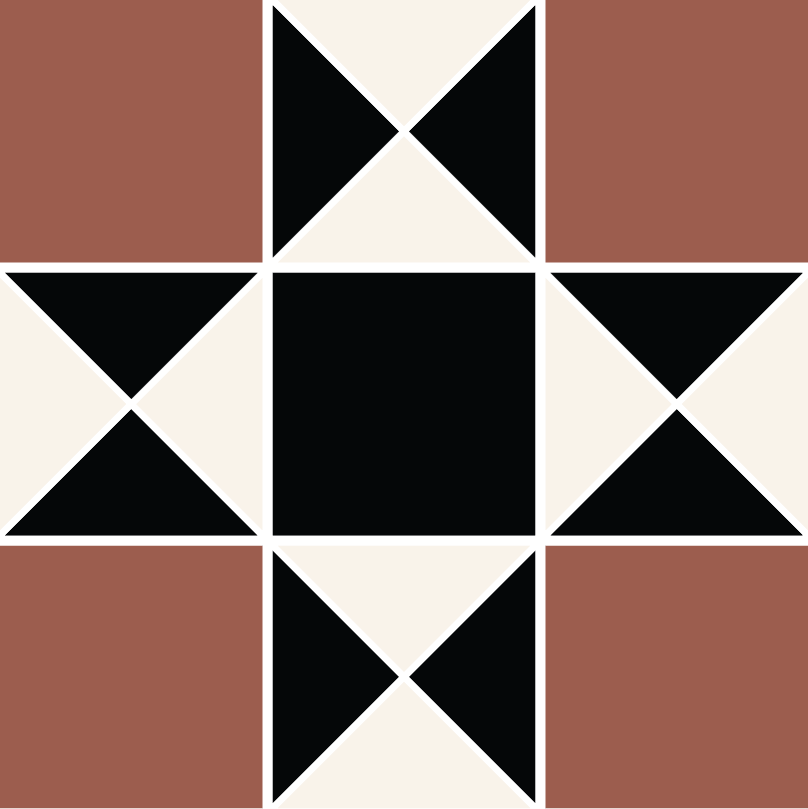

Donard Panel — Red
285 × 285 mm panel, code DONREV04P. £14.53 or €17.44 a panel, ex VAT
Donard Panel Collection

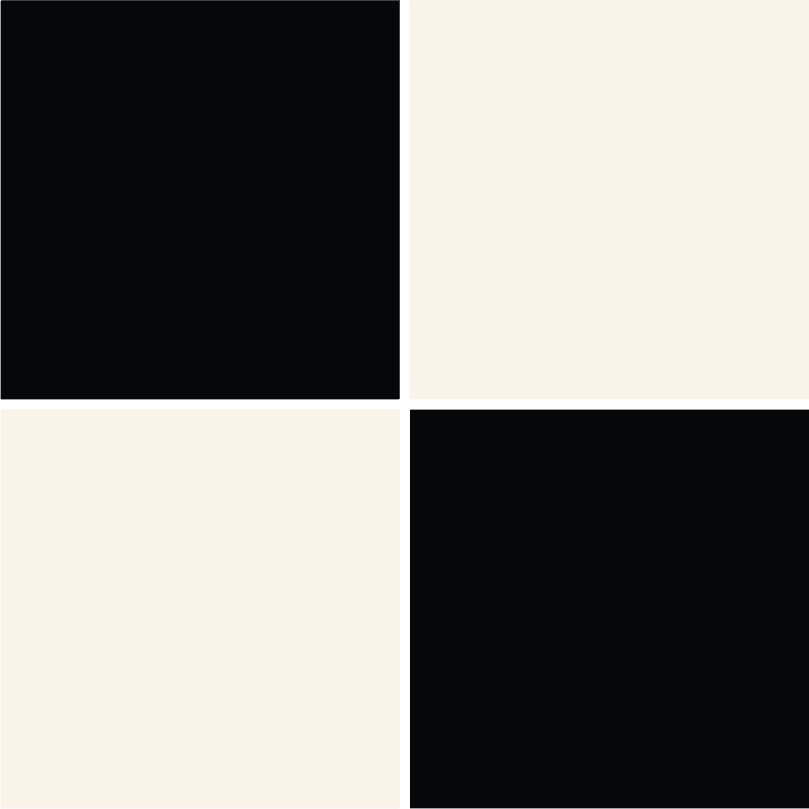

Classic Chequered
Cathedral
Lucas Panel Collection
Milford Panel Collection
Tollymore Panel Collection
Marina Panel Collection
Choose the panel again in the planner’s Pattern step.
Three steps from an empty room to a spec.
Draw the room
Type in the wall lengths, or draw the shape and drag its corners. Add doorways and anything fixed to the floor, like a kitchen island.
Pick a pattern
Choose an Armatile Victorian panel, then a border, plain infill and insets if you want them. The floor is redrawn at true scale as you go.
Get the spec
Download a specification PDF with every panel, strip, corner and cut counted, or email the design to the Armatile sales team for a quote.
Built on real quantities.
The planner works from Armatile’s catalogue and published price list, ex VAT, in pounds and euro. Every panel the border, a wall or an obstacle cuts is counted as a cut, with its size on the cut sheet.
Not included: adhesive, grout, screed and labour. Quantities and prices are indicative until Armatile confirms them in a formal quote.
- Panels
- 18
- In seven collections, each drawn from Armatile’s own artwork.
- Panel sizes
- 5
- 285, 297, 338, 381 and 385 mm. Each panel is laid at its own size.
- Gosford borders
- 10
- Every colourway with its matching 90° corner piece. Other angles are flagged for Armatile to treat by hand.
- Decorative insets
- 12
- Set into the centre of whole panels. Any panel the border or a wall cuts gets none.
- Plain infill
- 8
- For a band of plain tile between the border and the pattern.
- Wastage
- 10%
- Added by default for breakages and cutting. Change it from 0 to 20%, or switch it off.
- Spec pages
- 6
- Cover, Room and pattern, Bill of materials, Cut sheet, Setting-out drawing, Installation notes.
For tilers, and for the showroom counter.
On the showroom iPad
The planner is built for touch. Drag a corner of the room, swap the border, and the count and the price change in front of the customer.
A QR code on every spec
Each spec PDF carries a QR code that opens the design online, read-only, so whoever picks up the paper sees the same floor and the same numbers.
Straight to the sales team
Email the sales team from the planner and Armatile receives the spec PDF and a link to the design, ready for a formal quote.
Take it to a showroom
Bring your spec to any Armatile showroom and talk it through with the staff. Addresses and opening hours are on armatile.com (opens in a new tab).
- Armagh
- Belfast
- Newry
- Dublin
Start with the room you have.
A hallway, a porch or a bathroom: draw it, lay it, and download the spec. You don’t need an account for any of it.
